Last update: 11.06.2020

DIY BigBlueButton Server

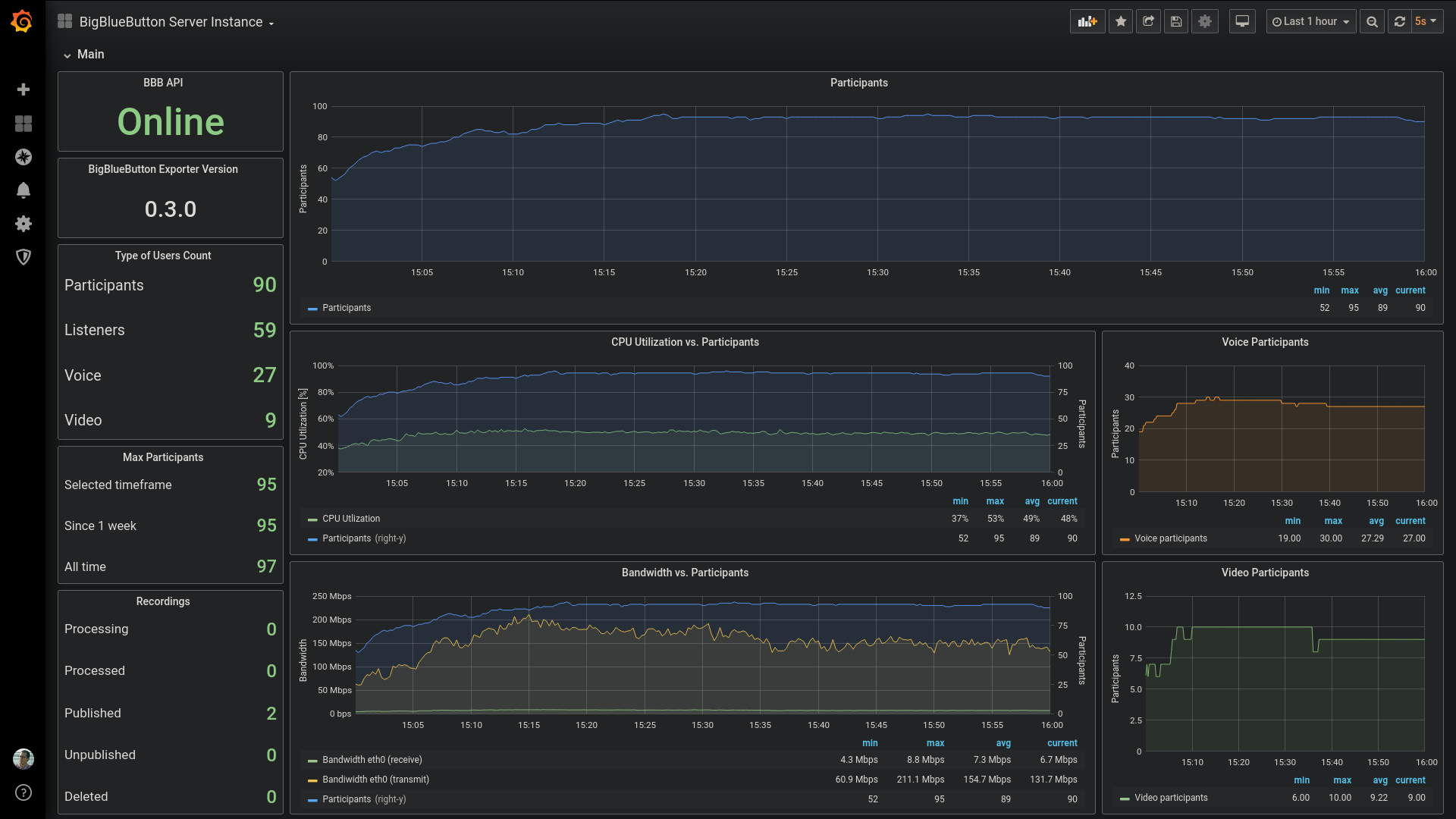

The FD Seminar runs on a cloud server with the following specifications:

Hetzner CCX41
Ubuntu 16.04 (Linux 4.4.0-178-generic)
Intel Xeon Processor (Skylake, IBRS, 16 dedicated vCPUs)
64 GB RAM / 8 GB Swap

We found these to be optimal for running a single BigBlueButton session with close to 100 participants.

11.06.2020

Below I outline the steps followed to set up our BigBlueButton instance.

Happy hacking!

Gustavo

P.S. FWIW Help the World by Healing Your NGINX Configuration.

Disclaimer: I am not an expert in server administration (not even close). The information below is provided for reference only and under no warranty of applicability or suitability. Use at your own risk!

BigBlueButton

The FD Seminar uses BigBlueButton (BBB)—an open-source web conferencing software—installed following the BBB official installation guide.

Greenlight

Greenlight is the standard end-user interface for the BBB server (needed to manage users, rooms, and recordings). It can be installed following the Greenlight official installation guide. For customising Greenlight to fit the needs of the seminar, I followed the Greenlight official customisation guide.

Greenlight

TURN server

Some users experienced problems when trying to join audio sessions in our BigBlueButton instance (error 1007). We set up a TURN server following the BBB official guide for setting up a TURN server to solve this issue.

These are the specifications of our TURN server:

Hetzner CPX11
Ubuntu 18.04.4 (Linux 4.15.0-99-generic)
AMD EPYC Processor (IBPB, 2 vCPUs)
2 GB RAM / 2 GB Swap

Live streaming

We use OBS Studio to stream the talks to an RTMP server which we set up following this guide at the NGINX blog, see also this guide for configuring the CORS headers. We stream using MPEG-DASH) and indigo-player.

These are the specifications of our RTMP server:

Hetzner CPX21
Ubuntu 18.04.4 (Linux 4.15.0-99-generic)
AMD EPYC Processor (3 vCPUs)
4 GB RAM / 2 GB Swap

Firewall

We use UFW to protect our servers by allowing incoming traffic only through a custom SSH port as well as the ports required by BBB to function, see for example this guide provided by Linode.

Server monitoring

We use Grafana and Prometheus to monitor our BBB instance. We the following Docker container provided by a third-party developer.

21.05.2020

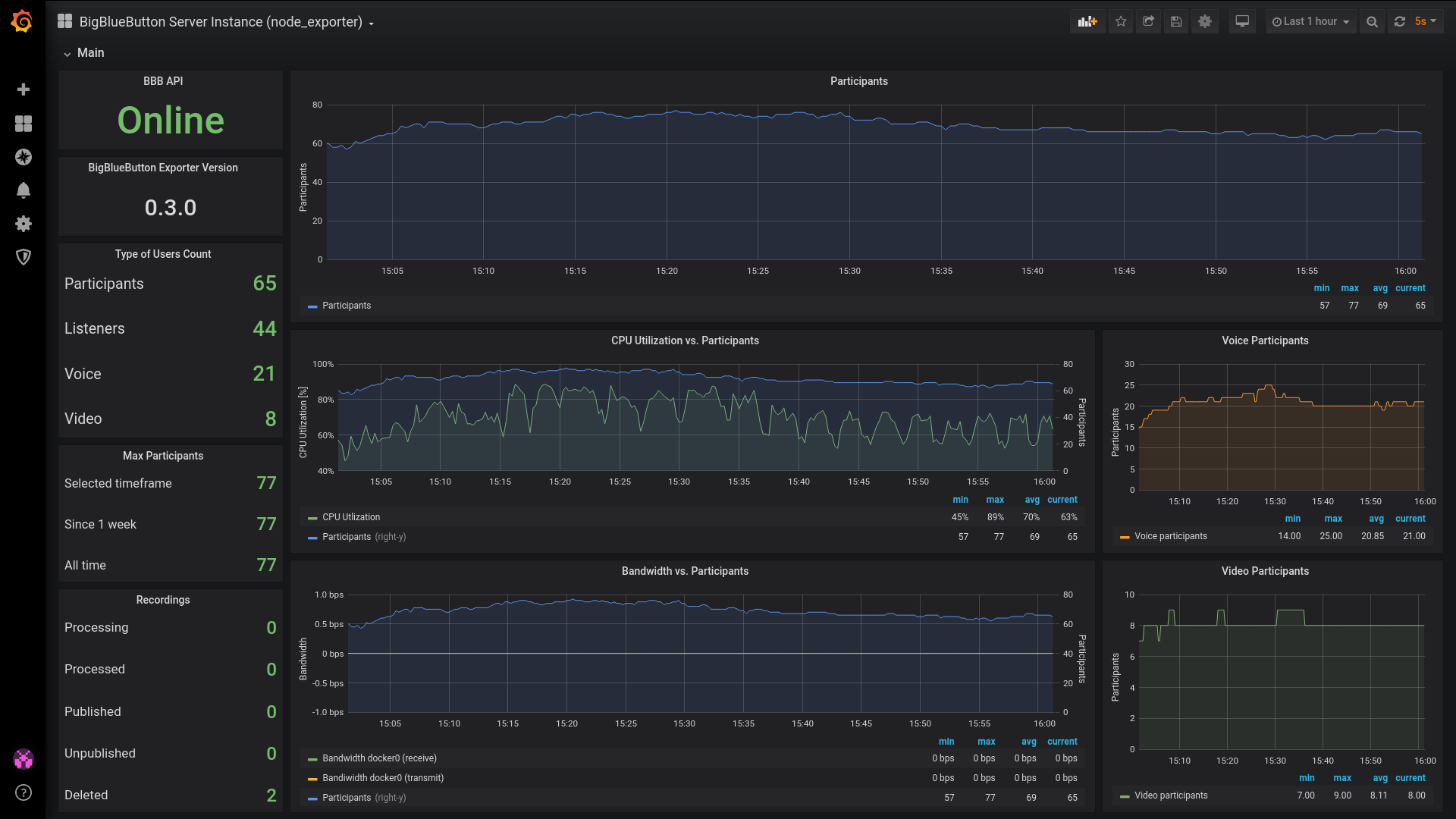

The FD Seminar ran on a cloud server with the following specifications:

Linode Dedicated 16GB
Ubuntu 16.04 (Linux 4.4.0-179-generic)
AMD EPYC 7501 32-Core Processor (8 dedicated vCPUs)
16 GB RAM / 10 GB Swap

We found these to be sub-optimal for running a single BBB session with 77 participants and 8 shared webcams (some users reported low audio quality).

21.05.2020

Automation

We manage our servers with Ansible; the playbooks below are run in the following order: TURN → BBB → Greenlight.

Updating BigBlueButton

# https://docs.bigbluebutton.org/2.2/install.html
# https://docs.bigbluebutton.org/2.2/customize.html

- hosts: bbb.fd-seminar.xyz
  become: yes
  vars:
    fqdn: bbb.fd-seminar.xyz
  tasks:
  - name: register cronjob for renewing letsencrypt certs
    cron:
      name: "renew letsencrypt certs"
      minute: "30"
      hour: "2"
      weekday: "1"
      job: "/usr/bin/certbot renew >> /var/log/le-renew.log"

  - name: register cronjob for restarting nginx after renewing letsencrypt certs
    cron:
      name: "restart nginx after renewing letsencrypt certs"
      minute: "35"
      hour: "2"
      weekday: "1"
      job: "/bin/systemctl reload nginx"

  - name: deny all incoming connections
    ufw:
      default: deny
      direction: incoming

  - name: allow all outgoing connections
    ufw:
      default: allow
      direction: outgoing

  - name: allow connections to port 22 (SSH)
    ufw:
      rule: allow
      port: '22'
      # use a different port for added security

  - name: allow connections to port 80 (HTTP)
    ufw:
      rule: allow
      port: '80'
      proto: tcp

  - name: allow connections to port 433 (TLS)
    ufw:
      rule: allow
      port: '443'
      proto: tcp

  - name: allow connections to port 16384:32768 (BBB)
    ufw:
      rule: allow
      port: '16384:32768'
      proto: udp

  - name: enable uncomplicated firewall (UFW)
    ufw:
      state: enabled

  - name: update all packages to the latest version
    apt:
      upgrade: dist
      update_cache: yes

  - name: restore BBBs FQDN
    command: bbb-conf --setip {{ fqdn }}

  - name: configure FreeSWITCH to support ipv6
    copy:
      src: files/nginx/bigbluebutton_sip_addr_map.conf
      dest: /etc/nginx/conf.d/bigbluebutton_sip_addr_map.conf
    # https://docs.bigbluebutton.org/2.2/troubleshooting.html#configure-bigbluebuttonfreeswitch-to-support-ipv6

  - name: replace static ip (v4) by $freeswitch_addr (ipv4+ipv6) in nginx sip conf (for use with FreeSwitch)
    lineinfile:
      path: /etc/bigbluebutton/nginx/sip.nginx
      regexp: 'proxy_pass'
      line: 'proxy_pass https://$freeswitch_addr:7443;'
      state: present

  - name: enable 3pcc in FreeSWITCHipv6 sip profile
    lineinfile:
      path: /opt/freeswitch/etc/freeswitch/sip_profiles/external-ipv6.xml
      regexp: '    <!--<param name="enable-3pcc" value="true"/>-->'
      line: '    <param name="enable-3pcc" value="true"/>'
      state: present

  - name: configure BBB to use our TURN server
    copy:
      src: files/coturn/turn-stun-servers.xml
      dest: /usr/share/bbb-web/WEB-INF/classes/spring/turn-stun-servers.xml
      owner: bigbluebutton
      group: bigbluebutton
      mode: u=rw,g=r,o=r
    # https://docs.bigbluebutton.org/2.2/setup-turn-server.html#configure-bigbluebutton-to-use-the-coturn-server

  - name: get local username
    local_action: command whoami
    become: no
    register: local_user

  - name: retrieve current TURN server static auth secret
    shell: "ssh {{ local_user.stdout }}@turn.fd-seminar.xyz cat /etc/turnserver.conf | grep static-auth-secret= | awk -F '=' '{print $NF}'"
    register: current_secret
    delegate_to: 127.0.0.1
    become_user: "{{ local_user.stdout }}"

  - name: update TURN server static auth secret in BBBs conf
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/spring/turn-stun-servers.xml
      regexp: 'STATIC_AUTH_SECRET'
      replace: "{{ current_secret.stdout }}"

  - name: set URL for default presentation in BBB sessions
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'beans.presentationService.defaultUploadedPresentation=.*'
      replace: 'beans.presentationService.defaultUploadedPresentation=https://www.fd-seminar.xyz/pdf/bbb-howto.pdf'

  - name: set default welcome message in BBB sessions
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'defaultWelcomeMessage=.*'
      replace: 'defaultWelcomeMessage=Welcome to <b>%%CONFNAME%%</b>!<br><br>A live stream of the talk is also available at <a href="https://www.fd-seminar.xyz/live" target="_blank"><u>https://www.fd-seminar.xyz/live</u></a><br><br>Username: fd-seminar<br>Password: access code for this meeting'

  - name: set default welcome message (footer) in BBB sessions
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'defaultWelcomeMessageFooter=.*'
      replace: 'defaultWelcomeMessageFooter=Thank you for joining!'

  - name: set maximum presentation page number
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'maxNumPages=.*'
      replace: 'maxNumPages=1000'

  - name: set maximum presentation file size
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'maxFileSizeUpload=.*'
      replace: 'maxFileSizeUpload=30000000'

  - name: mute meetings on start by default
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'muteOnStart=.*'
      replace: 'muteOnStart=true'

  - name: force BBB HTML5 client (participants)
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'attendeesJoinViaHTML5Client=.*'
      replace: 'attendeesJoinViaHTML5Client=true'

  - name: force BBB HTML5 client (moderators)
    replace:
      path: /usr/share/bbb-web/WEB-INF/classes/bigbluebutton.properties
      regexp: 'moderatorsJoinViaHTML5Client=.*'
      replace: 'moderatorsJoinViaHTML5Client=true'

  - name: disable "you are now muted" feedback sound
    replace:
      path: /opt/freeswitch/etc/freeswitch/autoload_configs/conference.conf.xml
      regexp: '      <param name="muted-sound" value="conference/conf-muted.wav"/>'
      replace: '      <!-- <param name="muted-sound" value="conference/conf-muted.wav"/> -->'

  - name: disable "you are now unmuted" feedback sound
    replace:
      path: /opt/freeswitch/etc/freeswitch/autoload_configs/conference.conf.xml
      regexp: '      <param name="unmuted-sound" value="conference/conf-unmuted.wav"/>'
      replace: '      <!-- <param name="unmuted-sound" value="conference/conf-unmuted.wav"/> -->'

  - name: set camera defaults to reduced bitrates (to reduce bandwidth)
    shell: >
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[0].bitrate 50
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[1].bitrate 100
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[2].bitrate 200
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[3].bitrate 300
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[0].default true
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[1].default false
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[2].default false
      yq w -i /usr/share/meteor/bundle/programs/server/assets/app/config/settings.yml public.kurento.cameraProfiles.[3].default false

  - name: delete raw data from unpublished recordings after 2 days
    replace:
      path: /etc/cron.daily/bigbluebutton
      regexp: 'recorded_days=.*'
      replace: 'recorded_days=2'

  - name: delete raw data from published recordings after 2 days
    replace:
      path: /etc/cron.daily/bigbluebutton
      regexp: 'published_days=.*'
      replace: 'published_days=2'

  - name: restart BigBlueButton
    command: bbb-conf --restart

  - name: restart nginx
    service:
      name: nginx
      state: restarted
      enabled: yes

Updating Greenlight

# https://docs.bigbluebutton.org/greenlight/gl-customize.html

- hosts: bbb.fd-seminar.xyz
  tasks:
  - name: update greenlight sources
    command: git pull upstream master
    args:
      chdir: /var/docker/greenlight
    become: yes

  - name: push greenlight sources to sourcehut
    command: git push origin fd-seminar
    args:
      chdir: /var/docker/greenlight
    become: yes

  - name: stop greenlight
    command: docker-compose down
    args:
      chdir: /var/docker/greenlight
    become: yes

  - name: rebuild greenlight
    command: /var/docker/greenlight/scripts/image_build.sh fd-seminar-bbb release-v2
    args:
      chdir: /var/docker/greenlight
    become: yes

  - name: start greenlight
    command: docker-compose up -d
    args:
      chdir: /var/docker/greenlight
    become: yes

Updating the TURN server

# https://docs.bigbluebutton.org/2.2/setup-turn-server.html

- hosts: turn.fd-seminar.xyz
  become: yes
  tasks:
  - name: deny all incoming connections
    ufw:
      default: deny
      direction: incoming

  - name: allow all outgoing connections
    ufw:
      default: allow
      direction: outgoing

  - name: allow connections to port 22 (SSH)
    ufw:
      rule: allow
      port: '22'
      # use a different port for added security

  - name: allow connections to port 80 (HTTP)
    ufw:
      rule: allow
      port: '80'
      proto: tcp

  - name: allow connections to port 443/tcp (TLS)
    ufw:
      rule: allow
      port: '443'
      proto: tcp

  - name: allow connections to port 433/udp (TLS)
    ufw:
      rule: allow
      port: '443'
      proto: udp

  - name: allow connections to port 3478/tcp (COTURN)
    ufw:
      rule: allow
      port: '3478'
      proto: tcp

  - name: allow connections to port 3478/udp (COTURN)
    ufw:
      rule: allow
      port: '3478'
      proto: udp

  - name: allow connections to port 49152:65535/udp (relay ports)
    ufw:
      rule: allow
      port: '49152:65535'
      proto: udp

  - name: enable uncomplicated firewall (UFW)
    ufw:
      state: enabled

  - name: update all packages to the latest version
    apt:
      upgrade: dist
      update_cache: yes

  - name: full system update
    apt:
      update_cache: yes
      upgrade: dist

  - name: install coturn
    apt:
      name: coturn
      state: present

  - name: set TLS listening port to port 443 (to bypass firewalls)
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'tls-listening-port=.*'
      line: 'tls-listening-port=443'

  - name: enable fingerprints in TURN messages
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#fingerprint'
      line: 'fingerprint'
      state: present

  - name: enable long-term credential mechanism
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#lt-cred-mech'
      line: 'lt-cred-mech'
      state: present

  - name: enable secret-based authentication
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#use-auth-secret'
      line: 'use-auth-secret'
      state: present

  - name: generated static auth secret
    shell: openssl rand -hex 16
    register: new_secret

  - name: update static auth secret
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'static-auth-secret=.*'
      line: 'static-auth-secret={{ new_secret.stdout }}'
      state: present

  - name: set default realm
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'realm=.*'
      line: 'realm=fd-seminar.xyz'
      state: present

  - name: set path to let's encrypt certificate file
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'cert=.*'
      line: 'cert=<path to certificate file>'
      state: present

  - name: set path to let's encrypt private key
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'pkey=.*'
      line: 'pkey=<path to certificate private key>'
      state: present

  - name: limit the allowed ciphers
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'cipher-list=.*'
      line: 'cipher-list="ECDH+AESGCM:ECDH+CHACHA20:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:RSA+AESGCM:RSA+AES:!aNULL:!MD5:!DSS"'
      state: present

  - name: enable longer DH TLS key
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#dh2066'
      line: 'dh2066'
      state: present

  - name: set path to log file
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'log-file=.*'
      line: 'log-file=/var/log/coturn.log'
      state: present

  - name: enable logging into a single file
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#simple-log'
      line: 'simple-log'
      state: present

  - name: disable TLS/DTLS protocols v1
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#no-tlsv1'
      line: 'no-tlsv1'
      state: present

  - name: disable TLS/DTLS protocols v1_1
    lineinfile:
      path: /etc/turnserver.conf
      regexp: '#no-tlsv1_1'
      line: 'no-tlsv1_1'
      state: present

  - name: log to a single file
    lineinfile:
      path: /etc/turnserver.conf
      regexp: 'log-file=.*'
      line: 'log-file=/var/log/coturn.log'
      state: present

  - name: copy log rotation conf
    copy:
      src: files/coturn/coturn
      dest: /etc/logrotate.d/coturn
      owner: root
      group: root
      mode: u=rw,g=r,o=r
    # https://docs.bigbluebutton.org/2.2/setup-turn-server.html#configure-log-rotation

  - name: enable coturn service in conf file
    lineinfile:
      path: /etc/default/coturn
      regexp: '#TURNSERVER_ENABLED=.*'
      line: 'TURNSERVER_ENABLED=1'
      state: present

  - name: enable coturn service
    service:
      name: coturn
      state: restarted
      enabled: yes
